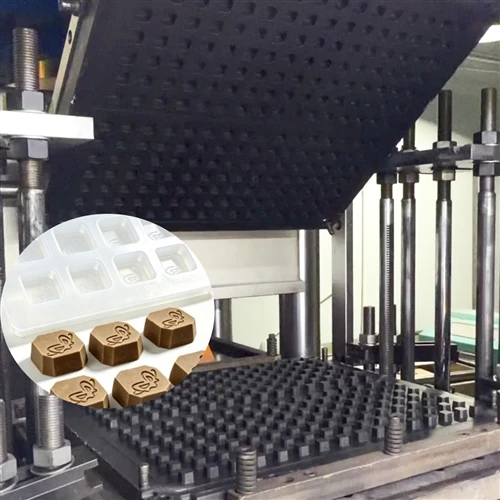

Freeze-dried mold & tooling materials: Silicone vs. Polypropylene
Silicone Freeze-dried Mold
Why choose silicone materials as freeze-dried mold & tray, not polypropylene (PP) materials:
PP (polypropylene) freeze-dried molds features: low cost and fast processing, and can work for basic freeze-dried candy, chocolate, coffee, ice cube. However, when appearance and shaping are required, their drawbacks become obvious immediately:
- The finished freeze-dried products have rough surfaces and fail to achieve a smooth and delicate finish.
- They can only form very simple 3D shapes and are basically unable to create intricate three-dimensional patterns.
- Fixed hardness makes them incompatible with different textures of freeze-dried goods.
The main Advantages of Silicone Freeze-Fried Mold & Tray
Food-grade silicone molds have become the upgraded choice for freeze-drying applications, thanks to four capabilities that PP molds cannot offer:
- High replication accuracy: Platinum-cured silicone with fine polishing delivers smooth and delicate finished surfaces.
- Elastic release for demolding: The cavity slightly deforms during demolding, which greatly reduces edge chipping rate.
- Adjustable hardness: Hardness can be selected according to products, balancing structural support and flexibility.
- Precision engraving capability: Supports high-precision 3D engraving. IP characters, brand embossments and complex textures can all be perfectly reproduced.
In addition, video-grade platinum silicone complies with food contact material standards such as LFGB and FDA, enabling easy access to export and high-end markets.
| Comparison Dimension | PP Mold | Silicone Mold | Impact on Freeze-dried Finished Products |
| Surface Replication Accuracy | Limited, finished products tend to be rough | High; smooth and delicate surface after fine polishing | Directly determines the appearance grade |
| Elastic Resilience | Almost none, hard demolding | Excellent, slight deformation for relief | Determines whether patterns suffer edge chipping |
| Hardness Adjustability | Basically fixed | Customizable to match customers' product requirements | Determines adaptability to different textures |
| Precision Engraving | Deep engraving & fine textures are limited | High-precision 3D engraving | Determines whether complex shapes can be realized |
| Demolding Smoothness | High resistance, prone to scratching | Low resistance; smoother with micro chamfers | Directly affects production yield |
| Food Compliance | Meets basic standards | latinum silicone, dual compliance with FDA/LFGB | Affects export and high-end market access |
Customer freeze-dried mold Case: polypropylene (PP) VS. Silicone (hCR & LSR)
Client's core requirements:
- Smooth and delicate surface on freeze-dried finished products to resolve the rough surface issue caused by PP molds.
- 3D shaped patterns with clear textures and intact edges molded on the surface of finished goods.
- Compatible with the existing freeze-drying process for smooth demolding.
Better Solution:
- Mirror polishing for the mold cavity, with food-grade platinum silicone raw material selected.
- Two sets of designs, namely recessed patterns and raised patterns, are developed simultaneously for customer comparison and selection.
- After multiple rounds of testing, 40–50A medium-low hardness silicone was finalized. Micro chamfers are applied on pattern edges to balance 3D definition and smooth demolding.
Final Results
- The freeze-dried finished products feature smooth and delicate surfaces, completely eliminating the roughness issue caused by PP molds.
- The mask pattern comes with clear textures and intact edges; no edge chipping or defects occur during demolding.
- After the client approved the samples, multi-cavity production molds were manufactured to support mass production.
Choosing Silicone Molds Is More Than a Material Upgrade - It's a Competitiveness Upgrade
Many manufacturers only focus on the unit price of molds when calculating costs, while ignoring three hidden economic benefits:
1. Yield Benefit: PP molds cause frequent edge chipping and defective products, resulting in continuous hidden losses during mass production. Silicone molds enable complete demolding and effectively improve the yield rate, greatly reducing unit production costs.
2. Premium Benefit: Smooth surface and intact 3D shapes upgrade ordinary freeze-dried blocks into sophisticated, designer-style consumer products, supporting higher market pricing and product premium.
3. Innovation Benefit: The high-precision engraving capability of silicone molds makes differentiated designs such as IP co-branding and brand embossments achievable, helping brands stand out in the homogenized freeze-dried food market.
